Yellow

Profine® Yellow Line

PROFINE® YELLOW is the total demineralization of water. Thanks to the mixed bed resin the reduction of salinity is total. It is used for the production of demineralized water especially in technological and industrial plants. Prohibited drinking use.

  • TOTAL DEMINERALIZATION
  • USE IN TECHNOLOGICAL AND INDUSTRIAL SYSTEMS
  • PROHIBITED DRINKING USE

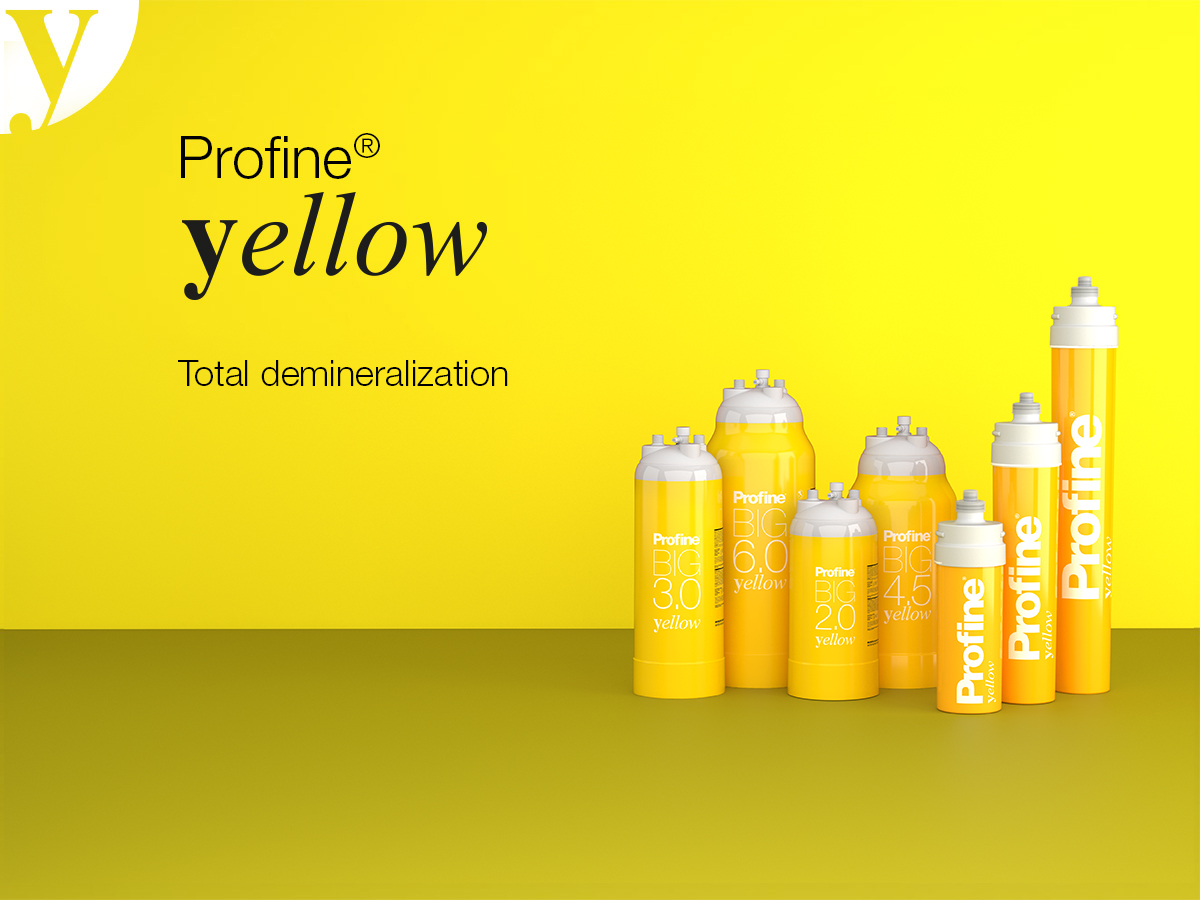

Total demineralization

PROFINE® YELLOW for total demineralization of incoming water, with cationic and anionic exchange resin. Filter for total salinity removal. Drinking water treated with Profine® Yellow is strictly prohibited.

TECHNICAL SPECIFICATION

SMALL MEDIUM LARGE
Flow rate 1 l/min * 1,5 l/min * 2 l/min *
Capacity 250 l * 400 l * 500 l *
Working pressure Min. 2 – Max. 6 Bar Min. 2 – Max. 6 Bar Min. 2 – Max. 6 Bar
Temperature Min. 4 Max. 30°C
(40-86°F)
Min. 4 Max. 30°C
(40-86°F)
Min. 4 Max. 30°C
(40-86°F)
* Flow rates and calculated autonomies with an inlet water hardness of 10 ° f.
The exchange capacities may vary depending on the hardness of the incoming water and the flow rates.

DIMENSIONS

SMALL MEDIUM LARGE
DIAMETER 87,4 mm 87,4 mm 87,4 mm
HEIGHT (without head) 269 mm 384 mm 529 mm
HEIGHT (with head) 300 mm 420 mm 560 mm


Total demineralization

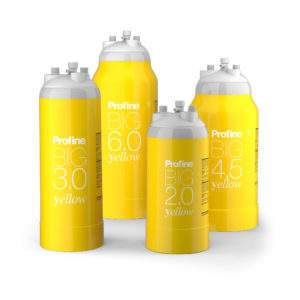

BIG PROFINE® YELLOW is part of a wide range of Profine® products tested and designed
to meet all your needs. It is ideal for use in professional and industrial areas where water without salts is needed.
The cartridge must be mounted vertically.
Use only in-out 3/8” female connections.

CONDITIONING VALVE

The process of activating the water filters consists of an initial start-up phase called Conditioning. Conditioning is an initial filter rinsing process required to ensure ideal operating conditions for the filter. This initial rinse guarantees the complete cleansing of all the inner filtering devices and the circuit itself. Conditioning should only be carried out during the first cartridge activation. This operation may take from a few seconds to several minutes. We also recommend doing it when the filter has been idle for long periods. You can find the indications for how many litres to use for the correct conditioning in the product technical data sheets.

TECHNICAL SPECIFICATIONS

BIG 2.0 BIG 3.0 BIG 4.5 BIG 6.0
Flow rate 2,2 l/min * 3,3 l/min * 5 l/min * 6,5 l/min *
Capacity 550 l * 800 l * 1.200 l * 1.600 l *
Working pressure Min. 2 – Max. 6 Bar Min. 2 – Max. 6 Bar Min. 2 – Max. 6 Bar Min. 2 – Max. 6 Bar
Temperature Min. 4 Max. 30°C
(40-86°F)
Min. 4 Max. 30°C
(40-86°F)
Min. 4 Max. 30°C
(40-86°F)
Min. 4 Max. 30°C
(40-86°F)
Capacity calculated on water with a carbonate hardness of 10 ° KD
*Based on manufacturer‘s internal tests

DIMENSIONS

BIG 2.0 BIG 3.0 BIG 4.5 BIG 6.0
WIDTH 140 mm 140 mm 180 mm 180 mm
DEPTH 140 mm 140 mm 177 mm 175 mm
HEIGHT 330 mm 407 mm 415 mm 480 mm
We recommend replacing the cartridge at the end of its nominal range, or if the output flow ate is
too slow. It’s better that you replace the cartridge within 365 days of its installation. Before removing
the cartridge, close the upstream water inlet and eliminate the pressure in the circuit by opening the
downstream tap. To activate the cartridge correctly, open the inlet valve and supply water for at least
five minutes before drinking it.
