Vending Cream

Profine Vending

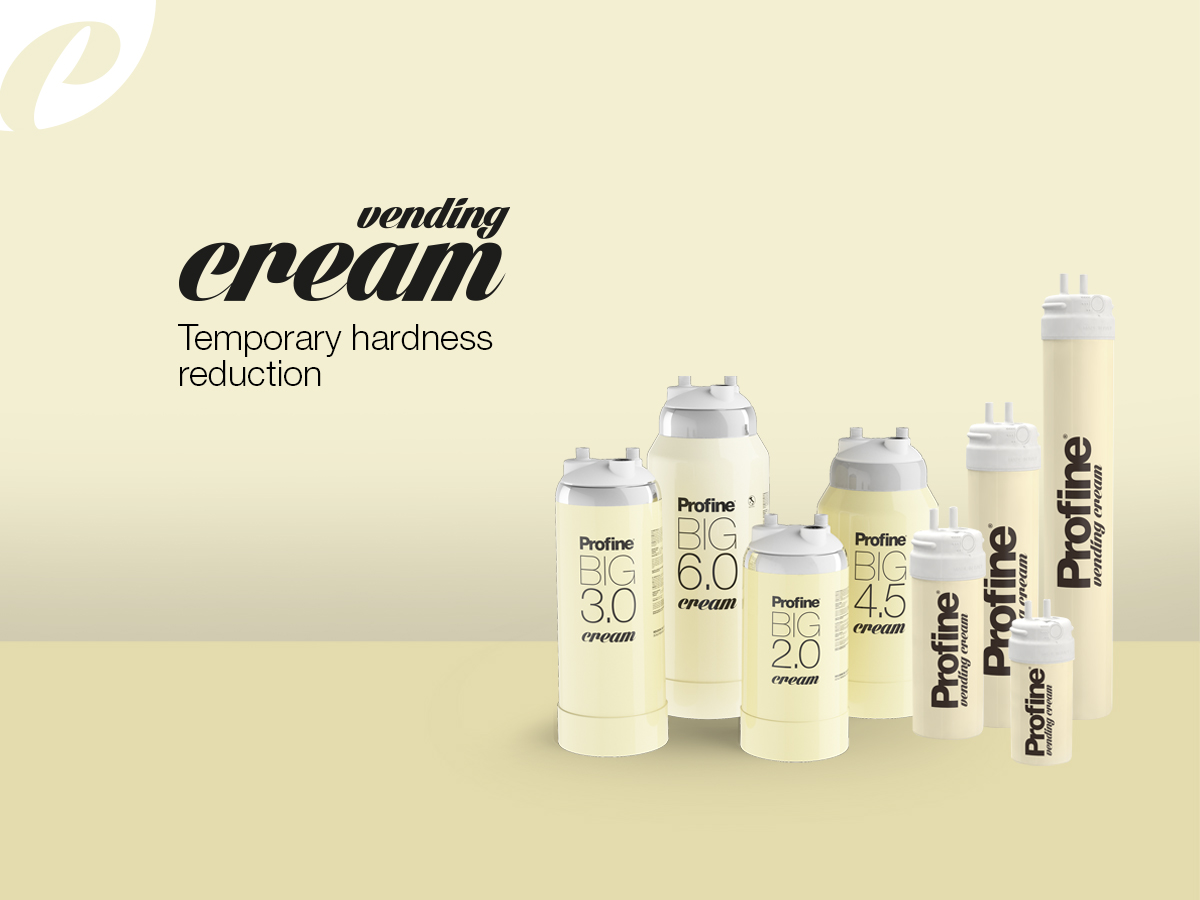

Profine® Cream Line

PROFINE® Cream is disposable cartridge for the removal of the temporary water hardness, the last phase of filtration is by “Profine® Carbon Block” technology with silver ions, filtration 0.5 microns for bacteriostatic action.

• REMOVES TEMPORARY HARDNESS AND ELIMINATES INCROSTATIONS
• REDUCES CHLORINE AND REMOVES BAD ODOURS AND OFF-TASTES
• BACTERIOSTATIC FEATURE

Temporary hardness reduction

PROFINE® CREAM is designed to reduce the temporary hardness
of drinking water, the last phase of filtration is by “Profine® Carbon Block” technology with silver ions, filtration 0.5 microns. If the cartridge is used in equipment related to the food sector, this system must meet the requirements of European Community Directive 178/2002.

TECHNICAL SPECIFICATIONS

MINI SMALL MEDIUM LARGE
Flow rate 0,5 l/min * 0,7 l/min * 1 l/min * 1,5 l/min *
Capacity 450 l * 700 l * 1.100 l * 1.600 l *
Working pressure Min. 2 – Max. 6 Bar Min. 2 – Max. 6 Bar Min. 2 – Max. 6 Bar Min. 2 – Max. 6 Bar
Temperature Min. 4 Max. 30°C
(40-86°F)		 Min. 4 Max. 30°C
(40-86°F)		 Min. 4 Max. 30°C
(40-86°F)		 Min. 4 Max. 30°C
(40-86°F)
* The data shown on the services may vary according to the water quality and adjacent.
* The effect of the filter cartridges depends on the hardness of the incoming water.

DIMENSIONS

MINI SMALL MEDIUM LARGE
DIAMETER 88 mm 88 mm 88 mm 88 mm
HEIGHT 202 mm 258,5 mm 373 mm 518,5 mm

Carbonate reduction with pH control and microfiltration

BIG PROFINE® CREAM is part of a wide range of Profine® products tested and designed to
meet all food service, catering and automatic distribution demands. It is ideal for use with automatic drink dispensers, coffee machines, steam and combined ovens. The cartridge must only be feed with cold water and mounted in vertical position. Use only in-out 3/8” female connections.

TECHNICAL SPECIFICATIONS

BIG 2.0 BIG 3.0 BIG 4.5 BIG 6.0
Flow rate 2  l/min * 2,5 l/min * 3,5 l/min * 4,5 l/min *
Capacity 2.000 l * 3.000 l * 4.500 l * 6.000 l *
Working Pressure Min. 2 – Max. 6 Bar Min. 2 – Max. 6 Bar Min. 2 – Max. 6 Bar Min. 2 – Max. 6 Bar
Temperature Min. 4 Max. 30°C
(40-86°F)		 Min. 4 Max. 30°C
(40-86°F)		 Min. 4 Max. 30°C
(40-86°F)		 Min. 4 Max. 30°C
(40-86°F)
Capacity calculated on water with a carbonate hardness of 10° dKH (18°F)
*Based on manufacturer‘s internal tests

DIMENSIONS

BIG 2.0 BIG 3.0 BIG 4.5 BIG 6.0
DIAMETER 135 mm 135 mm 173 mm 173 mm
HEIGHT 308 mm 385 mm 395 mm 464 mm
We recommend replacing the cartridge at the end of its nominal range, or if the output flow ate is
too slow. It’s better that you replace the cartridge within 365 days of its installation. Before removing
the cartridge, close the upstream water inlet and eliminate the pressure in the circuit by opening the
downstream tap. To activate the cartridge correctly, open the inlet valve and supply water for at least
five minutes before drinking it.
