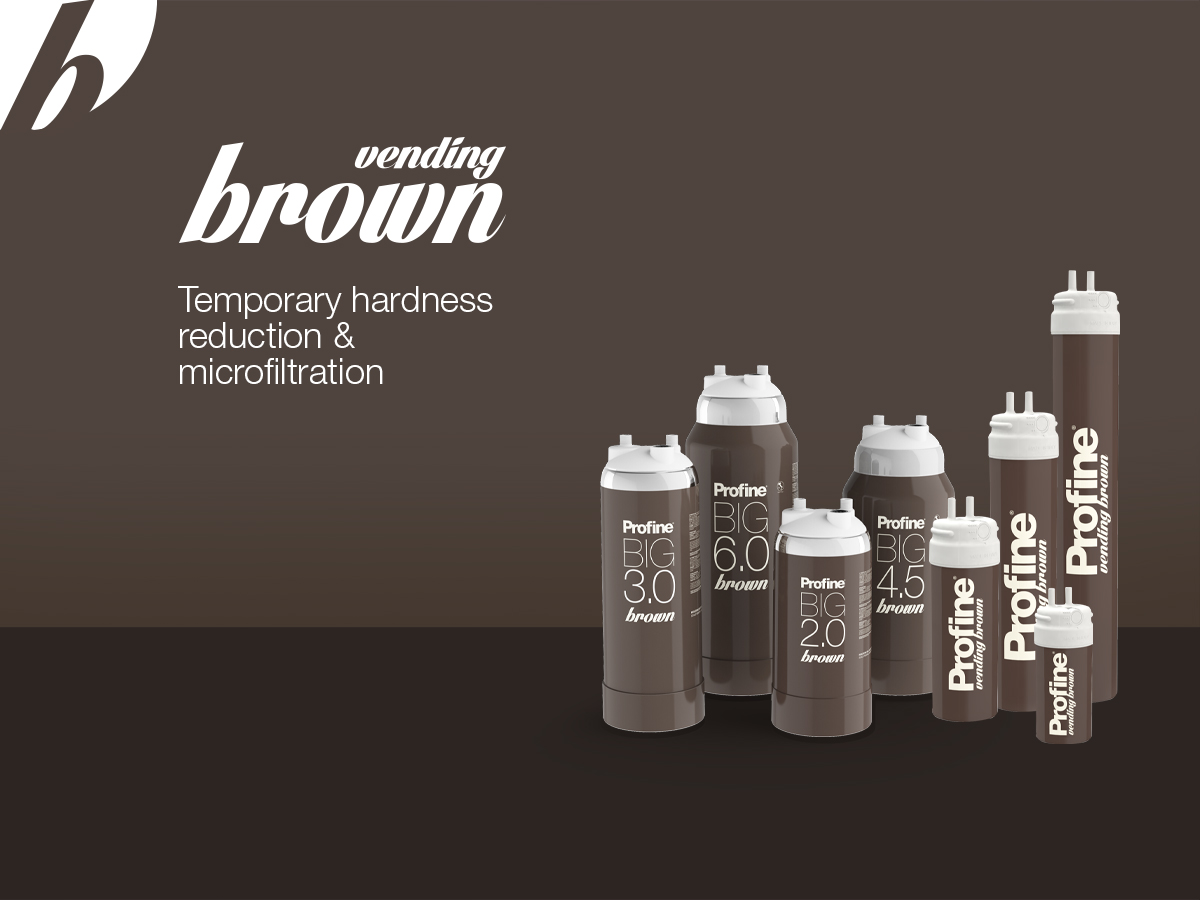

Profine® Brown Line

PROFINE® Brown refines the qualities of the water allowing to enhance the taste of the coffee and to obtain a cream with ideal colour and consistency, thanks to the multi-stage conception in the exclusive formulation of the specific ion exchanger bed, which guarantees the widest functional autonomy.

• PREVENTS RAINFALL FROM CARBONATES
• CONTAINS THE PH REDUCTION
• BACTERIOSTATIC ACTION

Reduction of carbonates and microfiltration

PROFINE® BROWN is part of a wide range of Profine® Vending products tested and designed to meet all needs in the restaurant, catering and vending industry. It is ideal for use with automatic beverage dispensers, coffee machines, steam ovens and/or combination ovens. The cartridge must be fed with cold water only.

TECHNICAL SPECIFICATIONS

MINI SMALL MEDIUM LARGE
Flow rate 0,5 l/min * 1 l/min * 1,5 l/min * 2 l/min *
Capacity 520 l * 800 l * 1250 l * 1850 l *
Working pressure Min. 2 – Max. 6 Bar Min. 2 – Max. 6 Bar Min. 2 – Max. 6 Bar Min. 2 – Max. 6 Bar
Temperature Min. 4 Max. 30°C
(40-86°F)		 Min. 4 Max. 30°C
(40-86°F)		 Min. 4 Max. 30°C
(40-86°F)		 Min. 4 Max. 30°C
(40-86°F)
Autonomies calculated with an inlet water hardness of 10 °dKH and by-pass at 15%.
Exchange capacities may vary according to inlet water hardness and flow rates.

DIMENSIONS

MINI SMALL MEDIUM LARGE
DIAMETER 88 mm 88 mm 88 mm 88 mm
HEIGHT 202 mm 258,5 mm 373 mm 518,5 mm

Reduction of carbonates and microfiltration

BIG PROFINE® BROWN takes part in a group of Profine® Vending products tested and designed to meet every demand in restaurant, catering and vending sectors. It’s ideal for use in drinking machines, coffee machines, combi-steamers. The cartridge must be used only with cold drinking water.

TECHNICAL SPECIFICATIONS

BIG 2.0 BIG 3.0 BIG 4.5 BIG 6.0
Flow rate 2,5 l/min * 3 l/min * 4 l/min * 5 l/min *
Capacity 2.300 l * 3.450 l * 5.200 l * 6.950 l *
Working pressure Min. 2 – Max. 6 Bar Min. 2 – Max. 6 Bar Min. 2 – Max. 6 Bar Min. 2 – Max. 6 Bar
Temperature Min. 4 Max. 30°C
(40-86°F)		 Min. 4 Max. 30°C
(40-86°F)		 Min. 4 Max. 30°C
(40-86°F)		 Min. 4 Max. 30°C
(40-86°F)
Capacity calculated on water with a carbonate hardness of 10 ° dKH (by-pass 15%)
*Based on manufacturer‘s internal tests
During operation the actual capacity is higher than indicated. Capacity may vary considerably depending on particular conditions of use and has been calculated on the basis of relations between equipment and use applications. Due to external factors (such as variable water quality), data may vary from those indicated.

DIMENSIONS

BIG 2.0 BIG 3.0 BIG 4.5 BIG 6.0
DIAMETER 135 mm 135 mm 173 mm 173 mm
HEIGHT 308 mm 385 mm 395 mm 464 mm
We recommend replacing the cartridge at the end of its nominal range, or if the output flow ate is too slow. It’s better that you replace the cartridge within 365 days of its installation. Before removing the cartridge, close the upstream water inlet and eliminate the pressure in the circuit by opening the downstream tap. To activate the cartridge
correctly, open the inlet valve and supply water for at least five minutes before drinking it.
