Ocra

Profine Cartridge

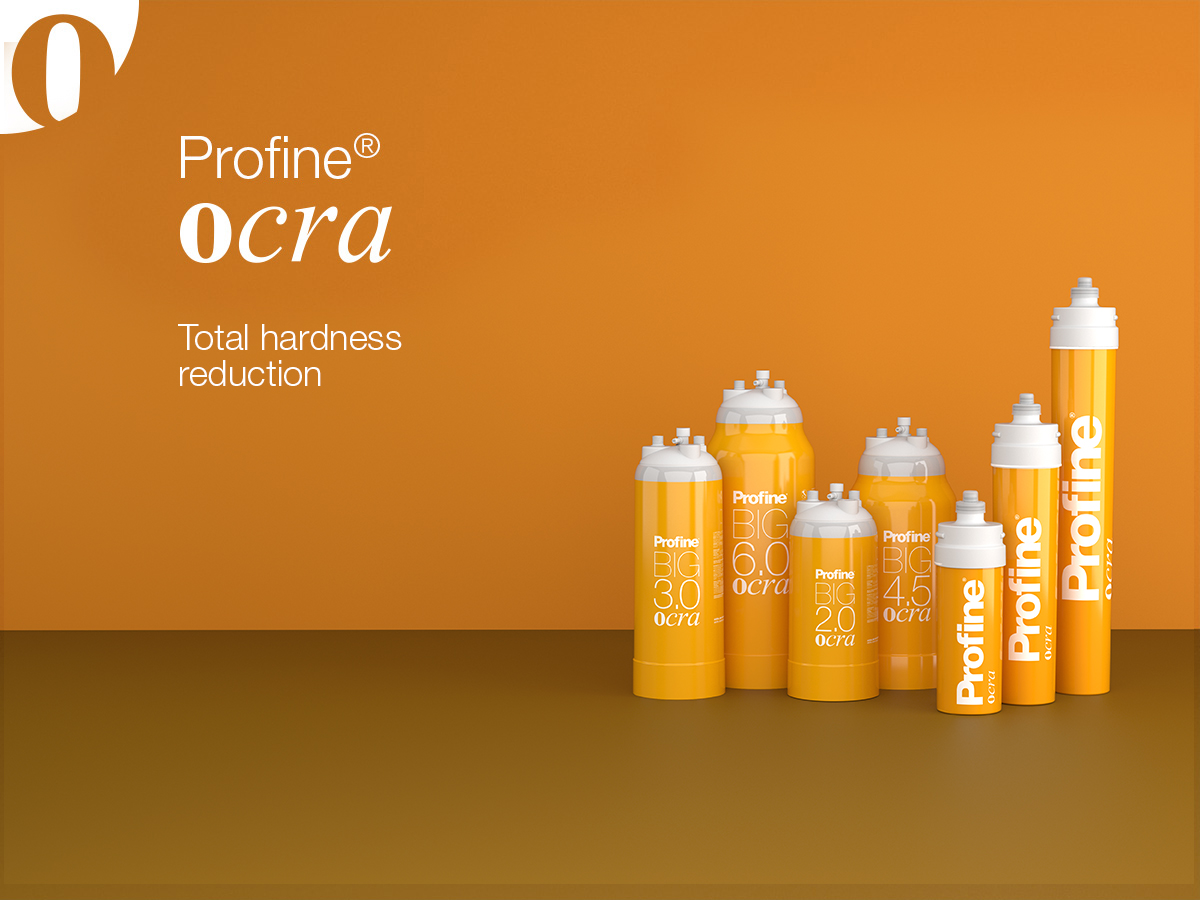

Profine® Ocra Line

PROFINE® OCRA is the cartridge for total softening HoReCa. Add prestige to your hotel and restaurant facilities. Use Ocra with its resin that reduces the total hardness of Water.
Remove radically scales due to deposits of limestone. Ocra protects you and protects your equipment.

  • REDUCES THE TOTAL HARDNESS
  • PROTECTION OF THE EQUIPMENT
  • EFFECTIVE AGAINST SCALE

Total hardness reduction

PROFINE® OCRA disposable cartridge for softening (removal of total hardness) of water thanks to the presence of strong cationic gel resin, with a fixed residual set to approximately 25%. If the cartridge is used in equipment related to the food sector, this system must meet the requirements of European Community Directive 178/2002

TECHNICAL SPECIFICATIONS

SMALL MEDIUM LARGE
Flow rate 1,5 l/min * 2 l/min * 2,5 l/min *
Capacity 670 l * 1.100 l * 1.600 l *
Working pressure Min. 2 – Max. 6 Bar Min. 2 – Max. 6 Bar Min. 2 – Max. 6 Bar
Temperature Min. 4 Max. 30°C
(40-86°F)		 Min. 4 Max. 30°C
(40-86°F)		 Min. 4 Max. 30°C
(40-86°F)
* Calculated autonomies with an inlet water hardness of 10 ° dKH and a 25% by-pass.
The exchange capacities may vary depending on the hardness of the incoming water and the flow rates.

DIMENSIONS

SMALL MEDIUM LARGE
DIAMETER 87,4 mm 87,4 mm 87,4 mm
HEIGHT (without head) 270 mm 385 mm 530 mm
HEIGHT (with head) 302 mm 417 mm 562 mm

Total hardness reduction

BIG PROFINE® OCRA is part of a wide range of Profine® products tested and designed to
meet all food service, catering and automatic distribution demands. It is ideal for use with automatic drink dispensers and coffee machines.
Equipped with integrated adjustable by-pass. The cartridge must only be feed with cold water and installed in vertical position.
Use only in-out 3/8” female connections.

CONDITIONING VALVE

The process of activating the water filters consists of an initial start-up phase called Conditioning. Conditioning is an initial filter rinsing process required to ensure ideal operating conditions for the filter. This initial rinse guarantees the complete cleansing of all the inner filtering devices and the circuit itself. Conditioning should only be carried out during the first cartridge activation. This operation may take from a few seconds to several minutes. We also recommend doing it when the filter has been idle for long periods. You can find the indications for how many litres to use for the correct conditioning in the product technical data sheets.

TECHNICAL SPECIFICATIONS

BIG 2.0 BIG 3.0 BIG 4.5 BIG 6.0
Flow rate 3 l/min * 4,5 l/min * 6,5 l/min * 9 l/min *
Capacity 1.700 l * 2.500 l * 3.800 l * 5.050 l *
Working pressure Min. 2 – Max. 6 Bar Min. 2 – Max. 6 Bar Min. 2 – Max. 6 Bar Min. 2 – Max. 6 Bar
Temperature Min. 4 Max. 30°C
(40-86°F)		 Min. 4 Max. 30°C
(40-86°F)		 Min. 4 Max. 30°C
(40-86°F)		 Min. 4 Max. 30°C
(40-86°F)
Capacity calculated on water with a carbonate hardness of 10° dKH (18° F)
*Based on manufacturer‘s internal tests

DIMENSIONS

BIG 2.0 BIG 3.0 BIG 4.5 BIG 6.0
DIAMETER 135 mm 135 mm 173 mm 173 mm
HEIGHT 308 mm 385 mm 395 mm 464 mm
We recommend replacing the cartridge at the end of its nominal range, or if the output flow ate is
too slow. It’s better that you replace the cartridge within 365 days of its installation. Before removing
the cartridge, close the upstream water inlet and eliminate the pressure in the circuit by opening the
downstream tap. To activate the cartridge correctly, open the inlet valve and supply water for at least
five minutes before drinking it.
