Nitrates

Profine Cartridge

Profine® Nitrates Line

PROFINE® NITRATES reduces the concentration of nitrates. Nitrate selective resin and final filtration stage at 0.5 μm with Profine® Carbon Block technology added with silver ions for bacteriostatic action. To be used with nitrate concentration up to 50 mg / l.

  • REMOVES BAD ODOURS AND OFF-TASTES AND AND REDUCES CHLORINE
  • GUARANTEES AN ANTIBACTERIAL ACTION
  • REDUCES THE CONCENTRATION OF NITRATES

Nitrate removal filter

PROFINE® NITRATES is a filter for the treatment of drinking water with a high concentration of the nitrate parameter. Last stage of filtration obtained with Profine® Carbon Block technology added with silver ions, with filtration degree of 0.5 μm. The cartridge must be installed in a vertical position.

TECHNICAL SPECIFICATIONS

SMALL MEDIUM LARGE
Flow rate 1 l/min * 1,5 l/min * 2 l/min *
Capacity 900 l * 1.400 l * 2.100 l *
Working pressure Min. 2 – Max. 6 Bar Min. 2 – Max. 6 Bar Min. 2 – Max. 6 Bar
Temperature Min. 4 Max. 30°C
(40-86°F)		 Min. 4 Max. 30°C
(40-86°F)		 Min. 4 Max. 30°C
(40-86°F)
 *Flow rates and calculated autonomies with concentrations of 60 mg / l of nitrates. The exchange capacities may vary depending on the nitrate concentrations of the incoming water and the flow rates.

DIMENSIONS

SMALL MEDIUM LARGE
DIAMETER 87,4 mm 87,4 mm 87,4 mm
HEIGHT (without head) 270 mm 385 mm 530 mm
HEIGHT (with head) 302 mm 417 mm 562 mm


Domestic filtration kit that eliminates nitrates

KIT PROFINE® NITRATES reduces nitrates that may be present in drinking water. The kit is equipped with everything needed for installation, faucet, flow meter and small parts included.

TECHNICAL SPECIFICATIONS

SMALL MEDIUM
Flow rate 1 l/min* 1,5 l/min*
Capacity 900 l * 1.400 l *
Working pressure Min. 2 – Max. 6 Bar Min. 2 – Max. 6 Bar
Temperature Min. 4 Max. 30°C
(40-86°F)		 Min. 4 Max. 30°C
(40-86°F)
*Flow rates and calculated autonomies with concentrations of 60 mg / l of nitrates. The exchange capacities may vary depending on the nitrate concentrations of the incoming water and the flow rates.

DIMENSIONS

KIT SMALL KIT MEDIUM
DIAMETER 87,4 mm 87,4 mm
HEIGHT (without head) 230 mm 385 mm
HEIGHT (with head) 302 mm 417 mm


Nitrate reduction in water and microfiltration

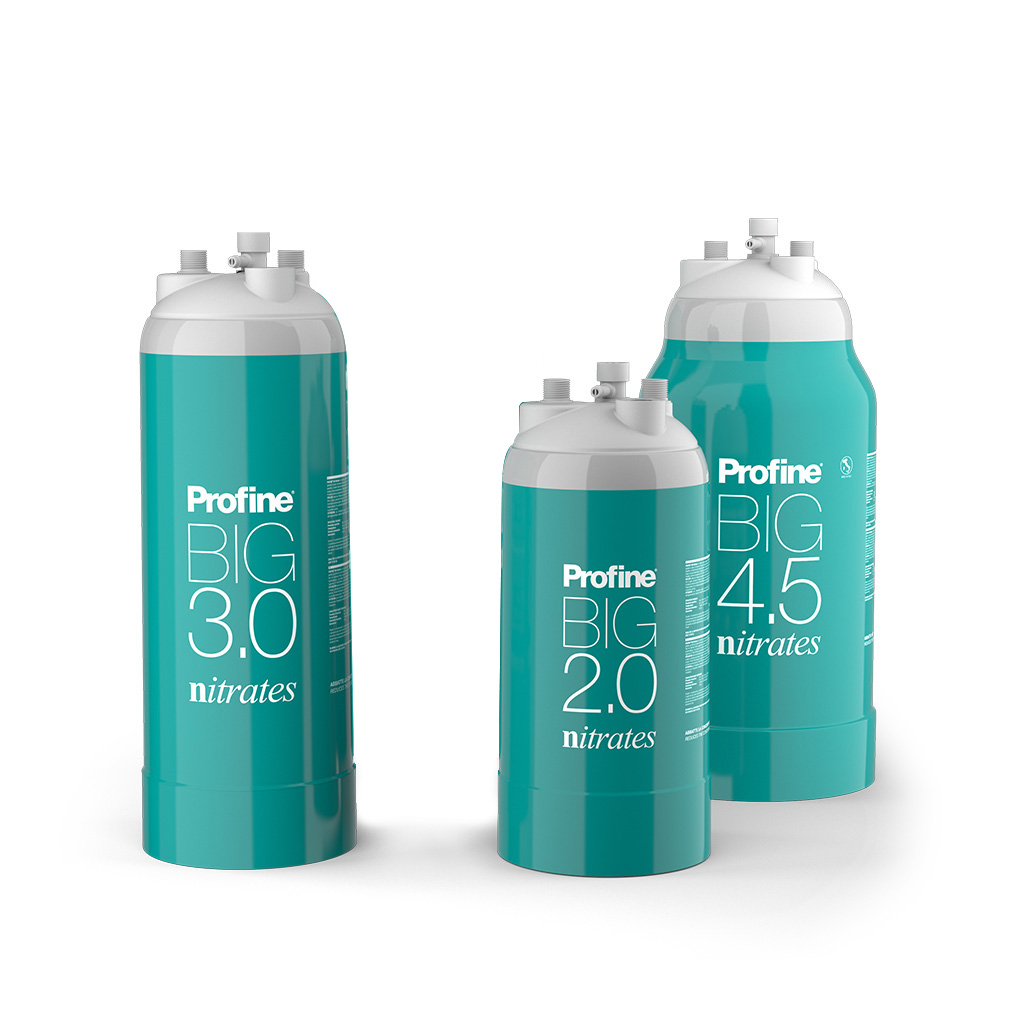

BIG PROFINE® NITRATES is ideal for use with
automatic drink dispensers and coffee machines. The cartridge must only be feed with cold water
and mounted in vertical position. Thanks to the multi-stage design combining selective nitrates resin and the Profine® Carbon Block technology, the Profine® BIG Nitrates cartridge offers the guaranty of a safe and good Water by eliminating nitrates. Profine® BIG Nitrates refines water quality by allowing
you to have nitrate-free drinks. It also eliminates unpleasant smells and flavors and guarantees a bacteriostatic action. The cartridge must be installed vertically. Use only in-out 3/8” female connections.

CONDITIONING VALVE

The process of activating the water filters consists of an initial start-up phase called Conditioning. Conditioning is an initial filter rinsing process required to ensure ideal operating conditions for the filter. This initial rinse guarantees the complete cleansing of all the inner filtering devices and the circuit itself. Conditioning should only be carried out during the first cartridge activation. This operation may take from a few seconds to several minutes. We also recommend doing it when the filter has been idle for long periods. You can find the indications for how many litres to use for the correct conditioning in the product technical data sheets.

TECHNICAL SPECIFICATIONS

BIG 2.0 BIG 3.0 BIG 4.5
Flow Rate 2 l/min * 2 l/min * 2 l/min *
Capacity 2.200 l * 3.300 l * 4.950 l *
Working pressure Min. 2 – Max. 6 Bar Min. 2 – Max. 6 Bar Min. 2 – Max. 6 Bar
Temperature Min. 4 Max. 30°C
(40-86°F)		 Min. 4 Max. 30°C
(40-86°F)		 Min. 4 Max. 30°C
(40-86°F)
Autonomy calculated on a water with a concentration of 60 mg NO3
*Based on manufacturer‘s internal tests

DIMENSIONS

BIG 2.0 BIG 3.0 BIG 4.5
DIAMETER 135 mm 135 mm 173 mm
HEIGHT 308 mm 385 mm 395 mm
We recommend replacing the cartridge at the end of its nominal range, or if the output flow ate is
too slow. It’s better that you replace the cartridge within 365 days of its installation. Before removing
the cartridge, close the upstream water inlet and eliminate the pressure in the circuit by opening the
downstream tap. To activate the cartridge correctly, open the inlet valve and supply water for at least
five minutes before drinking it.
