BIG LILAC

Profine Cartridge


 Profine® Lilac Line

PROFINE® LILAC refines water qualities, enhancing the flavour of coffee and other beverages. It provides vital protection for the machine’s technology by preventing the accumulation of limescale. It has an exclusive by-pass integrated in the cartridge head.

• PREVENTS LIMESCALE ACCUMULATION
• CONTAINS PH REDUCTION
• BACTERIOSTATIC ACTION

Carbonate removal and microfiltration

PROFINE® LILAC is a cartridge for drinking water treatment that reduces its carbonate hardness (limestone), removes odors and flavors and has a bacteriostatic action. The product complies with EU regulation 1935/2004.

TECHNICAL SPECIFICATIONS

SMALL MEDIUM LARGE
Flow rate 1,5 l/min * 2 l/min * 2,5 l/min *
Capacity 800 l * 1250 l * 1850 l *
Working pressure Min. 2 – Max. 6 Bar Min. 2 – Max. 6 Bar Min. 2 – Max. 6 Bar
Temperature Min. 4 Max. 30°C
(40-86°F)		 Min. 4 Max. 30°C
(40-86°F)		 Min. 4 Max. 30°C
(40-86°F)
Capacities may vary depending on incoming water and flow rates.

DIMENSIONS

SMALL MEDIUM LARGE
DIAMETER 87,4 mm 87,4 mm 87,4 mm
HEIGHT (without head) 269 mm 384 mm 529 mm
HEIGHT (with head) 300 mm 420 mm 560 mm

Carbonate reduction and microfiltration

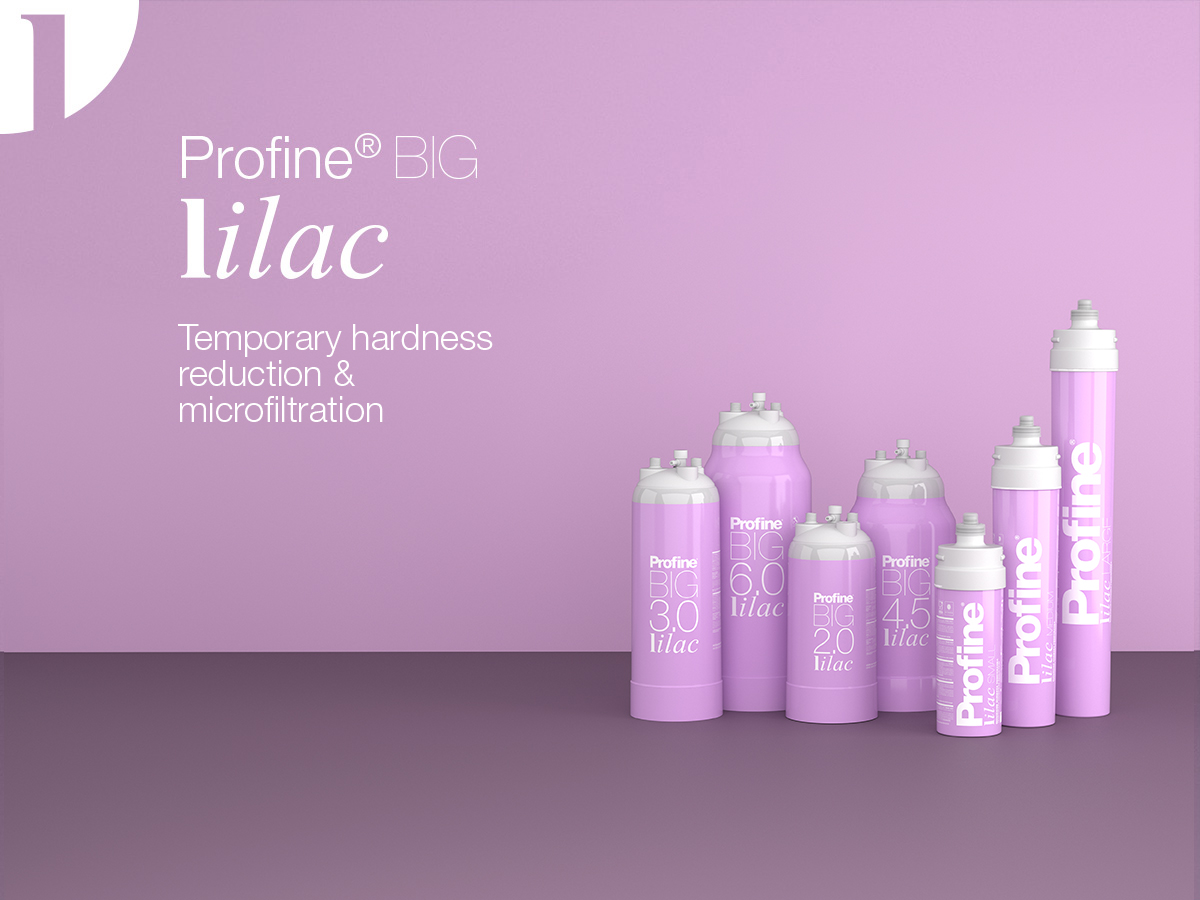

BIG PROFINE® LILAC is part of a wide range of Profine® products tested and designed
to meet all food service, catering and automatic distribution demands.
It has an exclusive by-pass integrated in the cartridge head. The exclusive design of the connections directly on the cartridge reduces the size and makes replacement easy
The cartridge must be mounted vertically.
Use only inout 3/8” female connections.

CONDITIONING VALVE

The process of activating the water filters consists of an initial start-up phase called Conditioning. Conditioning is an initial filter rinsing process required to ensure ideal operating conditions for the filter. This initial rinse guarantees the complete cleansing of all the inner filtering devices and the circuit itself. Conditioning should only be carried out during the first cartridge activation. This operation may take from a few seconds to several minutes. We also recommend doing it when the filter has been idle for long periods. You can find the indications for how many litres to use for the correct conditioning in the product technical data sheets.

TECHNICAL SPECIFICATIONS

BIG 2.0 BIG 3.0 BIG 4.5 BIG 6.0
Flow rate 2,7 l/min * 4 l/min * 6 l/min * 8 l/min *
Capacity 2.300 l * 3.450 l * 5.200 l * 6.950 l *
Working pressure Min. 2 – Max. 6 Bar Min. 2 – Max. 6 Bar Min. 2 – Max. 6 Bar Min. 2 – Max. 6 Bar
Temperature Min. 4 Max. 30°C
(40-86°F)		 Min. 4 Max. 30°C
(40-86°F)		 Min. 4 Max. 30°C
(40-86°F)		 Min. 4 Max. 30°C
(40-86°F)
Capacity calculated on water with a carbonate hardness of 10° dKH (18°F)
*Based on manufacturer‘s internal tests

DIMENSIONS

BIG 2.0 BIG 3.0 BIG 4.5 BIG 6.0
WIDTH 140 mm 140 mm 180 mm 180 mm
DEPTH 140 mm 140 mm 177 mm 175 mm
HEIGHT 330 mm 407 mm 415 mm 480 mm
We recommend replacing the cartridge at the end of its nominal range, or if the output flow ate is
too slow. It’s better that you replace the cartridge within 365 days of its installation. Before removing
the cartridge, close the upstream water inlet and eliminate the pressure in the circuit by opening the
downstream tap. To activate the cartridge correctly, open the inlet valve and supply water for at least
five minutes before drinking it.
