Ice

Profine Cartridge

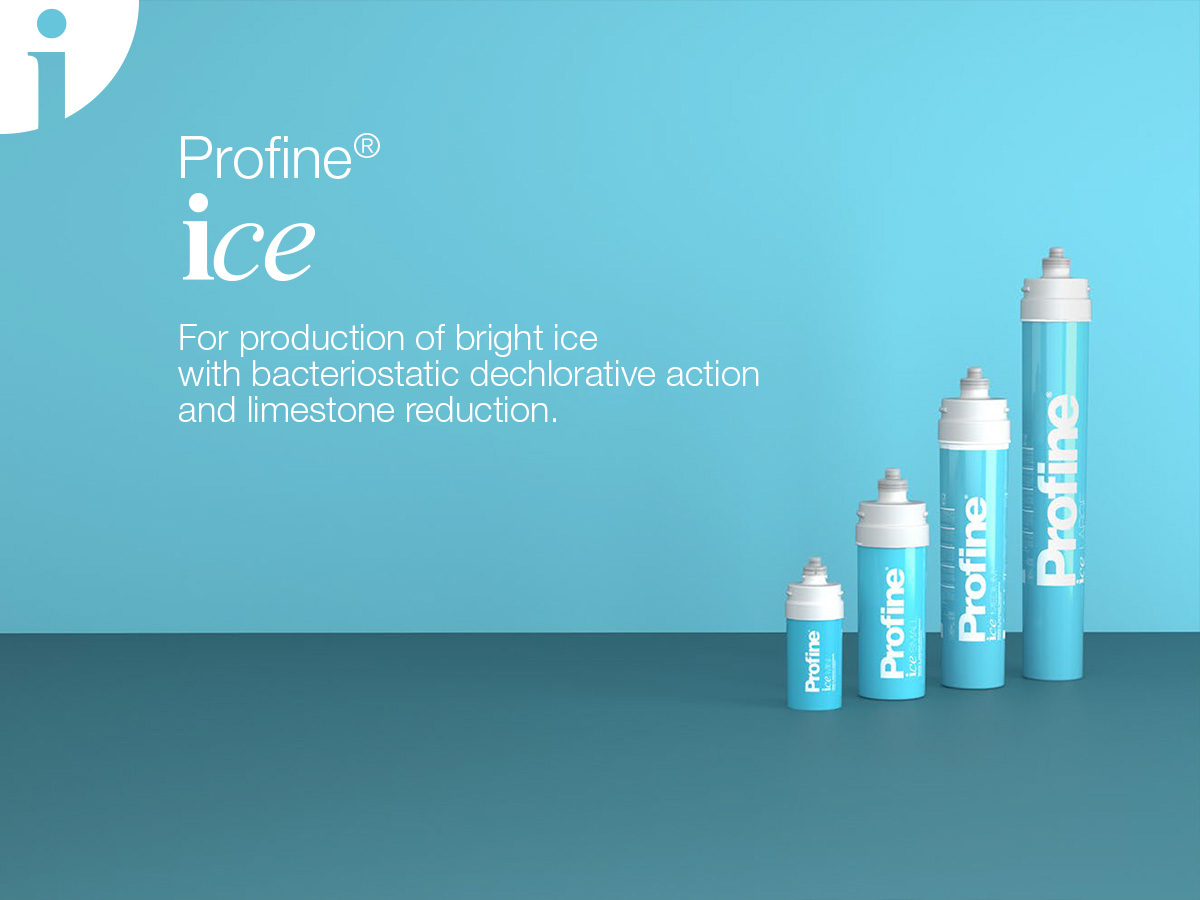

Profine® Ice Line

PROFINE® ICE has a first filtration and adsorbent stage made with 0.5 μm carbon block technology, that eliminates unpleasant odours and tastes and imparts a bacteriostatic action through silver ions. An anti-limescale final stage provides protection against limescale precipitation even at low temperatures as in ice production systems.

• CHLORINE REDUCTION AND REMOVAL OF DISAGREABLE ODOUR AND TASTE
• BACTERIOSTATIC ACTION
• SCALE REDUCTION AND MAKES ICE BRIGHT

For production of bright ice with bacteriostatic dechlorative action and limestone reduction.

PROFINE® ICE refines the drinking water by neutralizing the action of limestone, allowing the formation of a transparent and bright ice that, once immersed in the drinks, it becomes weightless, incorporeal and evanescent. At the same time it guarantees operational efficiency and extends the life of the equipment.

TECHNICAL SPECIFICATIONS

MINI SMALL MEDIUM LARGE
Maximum flow rate 0,6 l/min * 1,2 l/min * 2,4 l/min * 3,5 l/min *
Capacity 6.000 l * 10.000 l * 22.000 l * 30.000 *
Working Pressure Min. 2 – Max. 6 Bar Min. 2 – Max. 6 Bar Min. 2 – Max. 6 Bar Min. 2 – Max. 6 Bar
Temperature Min. 4 Max. 30°C
(40-86°F)		 Min. 4 Max. 30°C
(40-86°F)		 Min. 4 Max. 30°C
(40-86°F)		 Min. 4 Max. 30°C
(40-86°F)
*Production may vary depending on the quality of the incoming water. With reference to the lifetime of the
Profine® ICE Large cartridge, internal tests have shown a range of 45000 l.

DIMENSIONS

MINI SMALL MEDIUM LARGE
Diameter 87,4 mm 87,4 mm 87,4 mm 87,4 mm
Height (without head) 216.5 mm 270 mm 385 mm 530 mm
Height (with head) 245 mm 302 mm 417 mm 562 mm
We recommend replacing the cartridge at the end of its nominal life, or if the outflow is too slow.
However, the cartridge must be replaced within 365 days of its installation. Before removing the cartridge, close the inlet water valve and remove the pressure in the circuit by opening the downstream tap. Open the inlet valve and supply water for at least 5 minutes to activate the new cartridge.
